CIP / WIP Skid
Clean-in-place system from Pinnacle offers effective and reliable cleaning of process equipment and piping the PLC controlled fully automatic user friendly system.

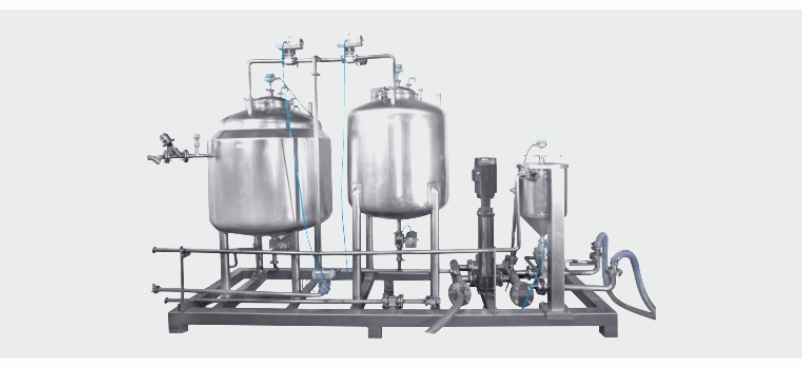

Construction
CIP system consists of following :
• Rinse water tank and detergent tank mounted on SS skid.
• Recurculation pump of adequate capacity for effective cleaning of process equipment and pipe lines.
• Flow control and diverter vales for controlling and diverting flow.
• Temperature and conductivity sensor.
• Control panel with HMI.
Working

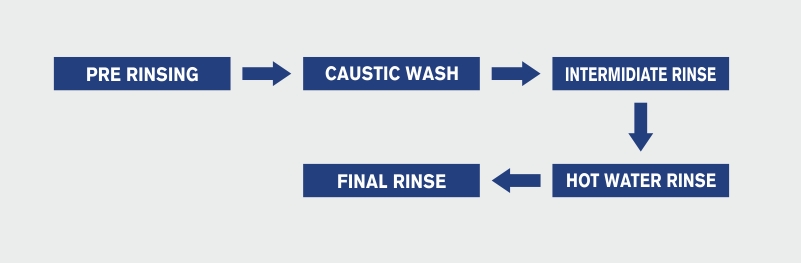

Cleaning Cycle involves:
Applications
CIP of processing vessels / Equipment and pipe lines
Capacity
Based on customer’s requirement
Advantages
• Reduced Operating time & costs
• Customized Design as per Customer’s Requirements
• Documentation support to comply with Regulatory & Validation Requirements
Salient Features & Options
• Complete automated process through PLC system for Recipe type functions
• User-friendly Maintenance design for Ergonomics
• Multiple options available for Heating, Mobility & Material of construction
