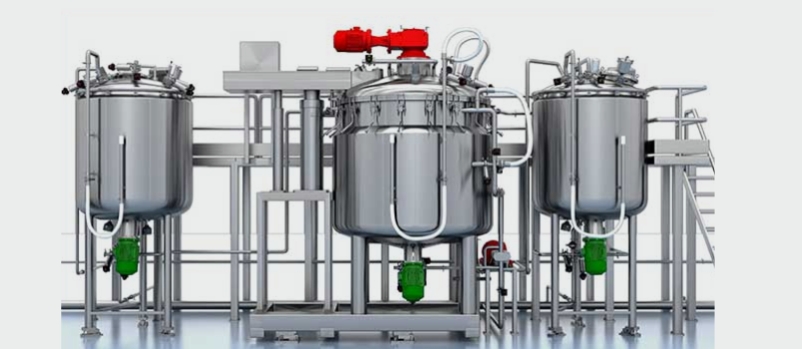

OINTMENT / CREAM MANUFACTURING PLANT
The Ointment Manufacturing Plants are ideal tools for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotions, Tooth Paste & other emulsions & homogenizations.
It is specially designed to take care of two critical factors which directly affects the quality of the Ointment / Creams.
• Negligible vacuum drop during mixing & blending.
• Minimum man handling
Ointment Manufacturing Plant consist the following equipment’s and accessories
1. Manufacturing Vessel or Jacketed Planetory Mixer
2. Wax Phase Vessel
3. Water Phase Vessel
4. Storage Vessel
5. Vacuum Pump
6. Control Panel
7. Product Piping
8. Working Platform
9. Material Transfer Pump to Transfer material from manufacturing Vessel or Planetory Mixer to Storage Vessel & Storage Vessel to Ointment ( Tube ) Filling M/C. ( 02 nos.)
PROCESS
• This system consists of a closed-circuit manufacturing facility from feeding of Wax / Water Phase to loading the hopper of filling machine.
• The Wax and Water at required temperature are transferred to Manufacturing Vessel or Planetory Mixer, by vacuum through conical filter.
• The product during emulsion formation is recirculated through Ointment Transfer Pump. The Pump also discharges the product in the Storage Vessel.
• The Storage Vessel is then taken to the filling area and is connected to again Ointment Transfer Pump. or Storage Vessel remain fixed (In bigger size) & pump transfer the ointments in the hopper of the Ointment Filling Machine.
• The entire Plant can be operated by centralized operating panel by one operator.
• The plant is equipped with an electrical control panel with digital temperature indicators and digital timers.
• Minimum two batches per shift of the same product can be assured in this plant.
• This plant conforms to CGMP standards (Paint Free Construction).
• All material transfers are done by vacuum or by transfer pumps. (Optional)
• The entry of all agitators are from top & High Speed Emulsifier from bottom or In- line Emulsifier (as per customer choice).
• All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
• All pipes, pipe fittings and valves are of SS304 / SS316 (as per custom requirement) seamless quality, internally electro polished, with tri-clover ended joints.
• The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment (As per customer choice)
• All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
