POWDER TRANSFER SYSTEM
Powder Transfer System (PTS) is an ideal solution for easy transfer of material in powder for by generating and maintaining vacuum in the system. 100% powder can be easily transferred from one process to another in time with minimum engagement of human resources. This pneumatically operated system offers safety and hygiene hence cGMP compliant.
Construction
Powder transfer system consists of:
• Collection point connected thru suitable piping.
• Powder transfer management module (Buffer Vessel).
• Vacuum System.
• Air / Nitrogen purge system.
• Discharge Point.
Working

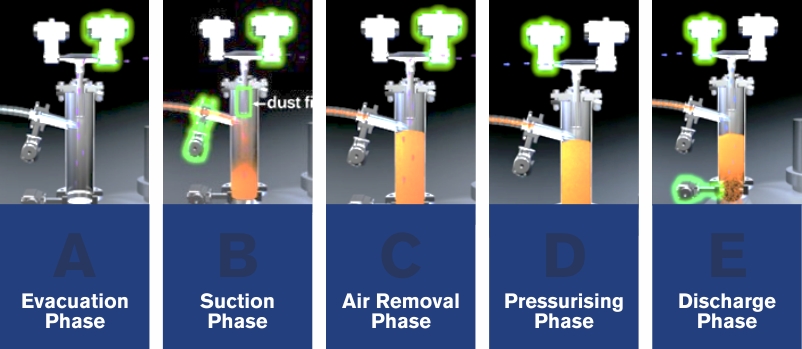

• Transfer of powder happens in following stages of operations:
Applications
Granule / Powder transfer in :
• Pharmaceutical Industries
• Food Industries
Capacity : 100 Kg/hr to 2000 Kg/hr.
Advantages
• Effective and reliable system for transfer of powders and granules
• Dust free operations
• Batch time reduction
• Manpower savings
• Easy cleaning and maintenance

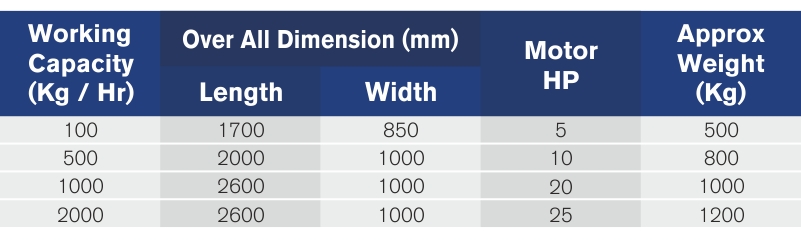

Product Range
Salient Features & Options
• Pneumatically operated transfer system for powder and granules.
• This is Closed system, hence operation is dust free.
• Powder is tranfered thru Buffer vessel which is directly mounted on processing equipment where podwer is to be delivered.
• Human exposure is considerably reduced OR eliminated
• Reduction in manpower.
• Eliminates hoists and handling equipment.
• Easy to clean. CIP – Optional.
• Built-in Pulsing mechanism ensures cleaning of filter.
• Integrated HMI system for automated process.
• Multiple options available for different applications: Fixed, Mobile & Wall mounted
